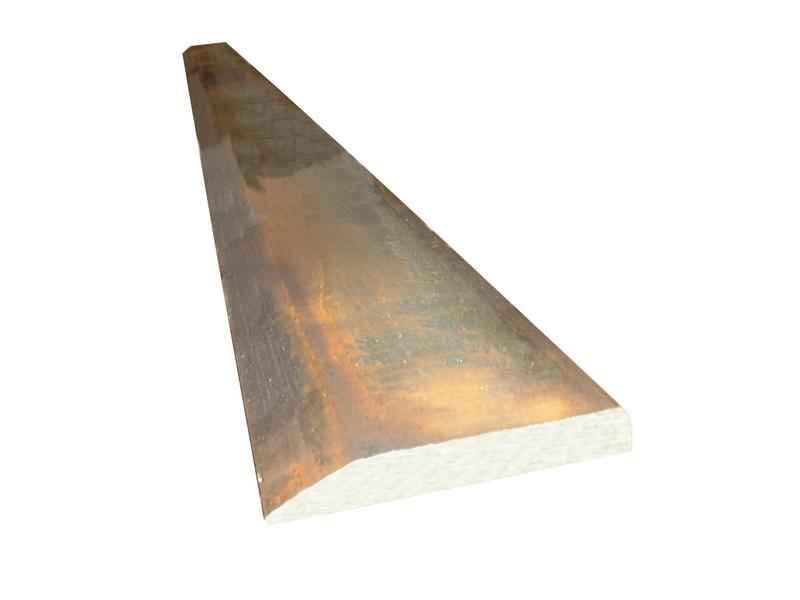

Weld On Bucket Edge (Single Bevel)

£412.00 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Blade Length x Width x Thickness 3000 x 200 x 20 mm 400-500 Hb 3000 x 150 x 16 mm 400-500 Hb 2500 x 200 x 20 mm 400-500 Hb 2500 x 150 x 16 mm 400-500 Hb 2000 x 100 x 16 mm 500 Hb

Weld On Bucket Edge – Single Bevel | Boron Alloy Steel | 400-500 Hb

Heavy-duty weld-on bucket edges manufactured from high-grade Boron Alloy Steel with a hardness rating of 400-500 Hb, offering exceptional wear resistance for demanding earthmoving and excavation applications.

The single bevel profile is designed for straightforward site welding, with a chamfered edge that facilitates a strong, reliable fillet weld. Available in a range of lengths, widths, and thicknesses to suit a variety of bucket sizes and machine classes.

Key Features:

Material: Boron Alloy Steel
Hardness: 400-500 Hb (500 Hb on selected sizes)
Profile: Single Bevel
Tariff Code: 8431410000
Brand: Sparex

Welding Instructions: Apply a 30° chamfer to the bucket edge. Clean all surfaces thoroughly before assembly. Clamp securely, then tack weld in several positions before applying a full fillet weld. Recommended electrodes: AWS-E7018 (pre-heat to 300°C), AWS-E110-18G (pre-heat to 100°C), or AWS-E307/E312 (no pre-heat). Allow weld to cool naturally — avoid rapid cooling to prevent thermal shock and cracking. Observe all applicable health and safety regulations.
